| 品牌：ABB | 加工定制：否 | 产品认证：CCC |
| 是否进口：否 | 型号：SB5103BSE000860R1 | 名称：模块 |
| 产品类型信息：SB5103BSE000860R1 | 功耗：10V | 系列：SB5103BSE000860R1 |
| 产品类型：模块 | 可售卖地：全国 |

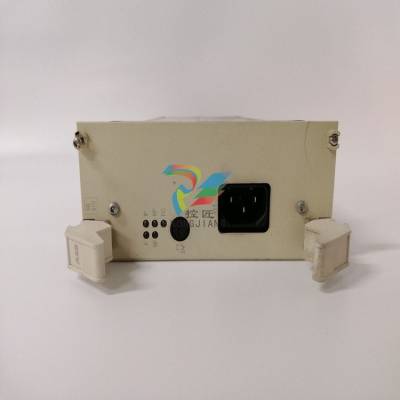

ABB SB510 3BSE000860R1 ABB模块厂家直销
产品说明：
在所有标准S800输入/输出模块的正面，至少有三个指示灯(运行， 警告和故障)指示模块状态。额外输出输入/输出 模块有一个指示OSP(输出设置为预定)的发光二极管和一些 输入模块有一个指示主要的发光二极管。数字输入/输出模块有一个 指示当前状态(开/关)和脉冲计数器输入/输出模块的每个通道的发光二极管 每个通道有两个或多个指示灯。S800L输入/输出模块有一个双色发光二极管 (状态)表示模块状态。 所有输入/输出模块都有用户参数，可以使用工程进行配置 工具。 复位电路将输入/输出模块保持在初始化状态，直到总线主控器指示 Modulebus电源有效。此外，标准的S800输入/输出 模块保持初始化状态，直到模块锁定机制(在MTU上)被 在锁定位置。 所有输出输入/输出模块实现输出设置为预定(OSP)功能。 如果操作系统监视器 定时器到期或接收到SetOSPState命令。 看门狗定时器由控制器(OSP定时器)设置，用于模块总线 监督。每当正确的节点地址 被解码(或广播)。如果看门狗定时器到期或SetOSPState 命令被接收，模块进入OSP状态，并且活动输出(如果 任何)都被设置为它们的OSP值。OSP值可以配置为 预定义值或设置为使用上次发送的好值。 只要模块处于OSP状态，输出值就会保持不变。改变 输出时，模块首先要离开这个状态。当重新进入运行状态时 状态，输出仍然保持其OSP值，直到新的有效值 写的。
On the front of all standard S800 I/O modules, there are at least three LEDs (RUN,
WARNING and FAULT) indicating the module status. Additionally output I/O
modules have one LED indicating OSP (Output Set to Predetermined) and some
input modules have one LED indicating PRIMARY. Digital I/O modules have one
LED per channel indicating the current state (on/off) and pulse counter I/O modules
have two or more LEDs per channel. S800L I/O module has one dual color LED
(STATUS) indicating the module status.
All I/O modules have user parameters that can be configured using the engineering
tool.
The reset circuitry keeps the I/O module in Init State until the bus master indicates
that the Modulebus power supply is valid. In addition, the standard S800 I/O
modules are kept in Init State until the module locking mechanism (on the MTU) is
in the locked position.
All output I/O modules implement the Output Set to Predetermined (OSP) function.
The outputs of the I/O module are set to a predetermined value, if the OSPwatchdog
timer expires or if the SetOSPState command is received.
The watchdog timer is set by the controller (OSP timer) and is used for ModuleBus
supervision. The watchdog timer is re-triggered every time the correct node address
is decoded (or broadcast). If the watchdog timer expires or if the SetOSPState
command is received, the module enters the OSP state and the active outputs (if
any) are set to their OSP values. The OSP value can be either configured as a
predefined value or set to use the last good value sent.
The output values are kept as long as the module stays in the OSP state. To change
the outputs, the module first has to leave this state. When re-entering Operational
State, the outputs are still kept with their OSP value until new valid values are
written.
主营产品，优势供应：
l ABB DCS控制系统：
800Xa系列：PM85IAK01 ,PM857AKO1,PM867K02,PM866AK02
FREELANCE 800F系列：AC800M,S800I10,
AC800M系列：CI854A,CI853,CI855,CI857,CI856S800
S800的I/O系列：AI801,AI810,AI815,AI820,AI830,AI890,AO815,CI845,DI810,DI821等
S900 I/O系列：AI910B (A14-B), AI9315 (AI4H-EX)
